STRIKING DESIGN IN A

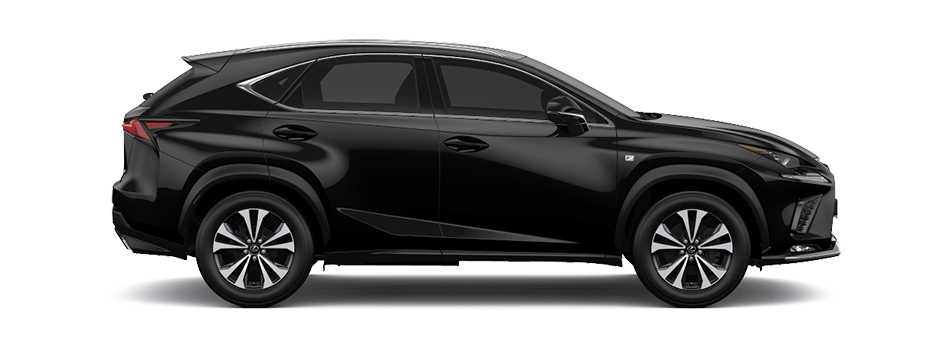

NX 300 F SPORT
Comfort & Design
Lexus’s iconic L-shaped clearance lamps complement the LED headlights, so your vehicle is immediately recognizable as a Lexus.
If you have a Qi-compatible phone, the NX 300 F SPORT can charge it wirelessly with the available charging tray.
EXTRA SPACIOUS REAR SEATS
The distance between the NX’s front and rear seats comes in at an impressive 962 mm, topping Lexus’s competitors.
A 8-inch multi-information screen next to the speedometer displays your tire pressure, fuel consumption and audio information at one glance.
A puddle lamp installed in the exterior door handle clearly shows you the handle’s location at night while throwing a pool of light around your feet.
POWER REAR HATCH
Especially great for low-ceiling garages, the rear hatch’s memory function allows you to set an automatic stop position, so it never hits the ceiling.
EXCLUSIVE TO NX 300 F SPORT
F SPORT GRILLE
Unique to the NX 300 F SPORT, the L-mesh grille makes a bold design statement, coupled with a metallic-coated lower bumper molding, and black side mirrors to match.
F SPORT seats feature integrated foaming technology to keep you firmly in place even during aggressive driving.
The F SPORT meter is the centerpiece of the NX 300 F SPORT dashboard, and directly inspired by the animated digital gauge in the LFA supercar.
DARK ROSE INTERIOR
The signature Dark Rose leather upholstery complements the brushed aluminum elements to endow the cabin with a sporty design.
The cabin is decked out in dimpled leather with an exclusive perforated finish on the steering wheel and shift knob.
Invoking a touch of sportiness are the sleekly designed aluminum pedals, exclusive to F SPORT models.
18-INCH ALUMINUM WHEELS
The NX 300 F SPORT comes with 18-inch aluminum wheels with a glossy luminous finish, lending an aggressive presence on roads.
ECO DRIVING INDICATOR
The NX promotes eco-friendly driving with an indicator that lights up when the accelerator is used in an eco-friendly manner.
DRIVE MODE SELECT
Select performance to match your driving style with four drive modes: NORMAL, ECO, SPORT and SPORT S+.
6 SRS AIRBAGS
Collision impact is greatly reduced with six sensor-controlled SRS airbags lining the cabin, providing enhanced protection for all occupants.
WIDE ANGLE CORNERING LIGHTS
Wide angle lights provide you with additional illumination when taking corners and in low-visibility areas.
The parking assist monitor accurately guides your parking attempts by superimposing projected parking lines on the back camera’s video feed.
Engine Type 8AR-FTS 4 Cylinder, 2.0L turbocharged, 16-valve , Dual VVT-I (intake) Drive All-Wheel Drive Transmission Type CVT Displacement 1,998 cc Bore x Stroke 86.0 x 86.0 mm Compression Ratio 10 Max. Output 235hp
Fuel Consumption 10.5 L / 100km
CO₂ Emissions 119g /km
Max. Speed 200 km/h Max. Torque 210 Nm / 4200 - 4400 rpm Acceleration 9.2 sec (0 - 100 km/h)
Brakes Front Ventilated Disc Brake Rear Disc Brake Suspension Front MacPherson Strut Rear Trailing Arm Double Wishbone Steering System Electric Power Steering
Overall Length 4,640 mm Width (With mirrors) 2,130 mm Width (Without mirrors) 1,845 mm Height 1,630 mm Wheelbase 2,660 mm Tread Front 1,580 mm Rear 1,580 mm Min. Turning Radius (Tyre) 5.7 m Weight Curb Weight 1,785 - 1,905 kg Gross Vehicle Weight 1,800 kg Boot Capacity 475 L Fuel Tank Capacity 59 L
HYBRID MOTOR AND BATTERY
Motor Type Permanent Permanent Magnet Synchronous Motor Max. Output (Front) 105 kW Max. Output (Rear) 50 kW Max. Torque (Front) 270 Nm Max. Torque (Rear) 139 Nm Battery Type NiMH Number of Battery Cells 204
The models selected have the same features.
SMART Key Entry System SMART Start Ignition Cruise Control New Generation Lexus Remote Touchpad Interface Wireless Device Charger Rain-sensing Wipers Drive Mode Select (Eco, Normal, Sport, EV) Door Handles with LED Illumination and Hidden Keyhole
AUDIO & ENTERTAINMENT
USB Port / Audio Mini Jack AM/FM Tuner DVD Player Bluetooth Telephone Connectivity Lexus Display Audio with 8-inch Display Screen Lexus Premium Audio System with 8 Speakers
Lighting Bi-LED Triple 'L' Headlamps Headlight Auto-leveling LED Daytime Running Lamps LED Front Fog Lamps + Cornering Lamps Headlamp Cleaner Airbag System 7 SRS Airbags Driver Multi-stage and Front Passenger's Dual Supplemental Restraint System (SRS) Airbags Driver Knee Airbags Driver and Front Passenger's Side Airbags Front and Rear Seat Curtain Shield Airbags Outboard rear seat anchor bars for fixing ISOFIX-Compliant Child seat Electronic Power Steering (EPS) Electronic Brake Distribution (EBD) Electronic Parking Brake (EPB) Brake Assist (BA) Vehicle Stability Control (VSC) Traction Control System (TCS) Anti-Lock Brake System (ABS) Tire Pressure Warning System (TPWS) Hill Start Assist Rear View Camera with Back Guide Monitor Lexus Parking Assist System with 8 Sensors Anti-Theft system with horn
Perforated aluminum pedals Reclining / Folding Rear Seats 60/40
Power Tilt and Telescopic Steering Column with audio controls and paddle shifters Auto Retractable electrochromic Wing Mirrors Electrochromic (EC) Inside Rear View Mirror Electrochromic (Auto-dimming) Inside Rear View Mirror Dual-Zone Independent Climate Control Seat air ventilation (Driver and front passanger) Original Factory Fitted Upholstery Lexus: F-Sport Leather 8-Way Power Adjustable Front Seats with memory Power back door
RIMS & TIRES
Bridgestone 225 / 60 R18 Aluminium Wheels Spare Tire
The models selected have the same features.
